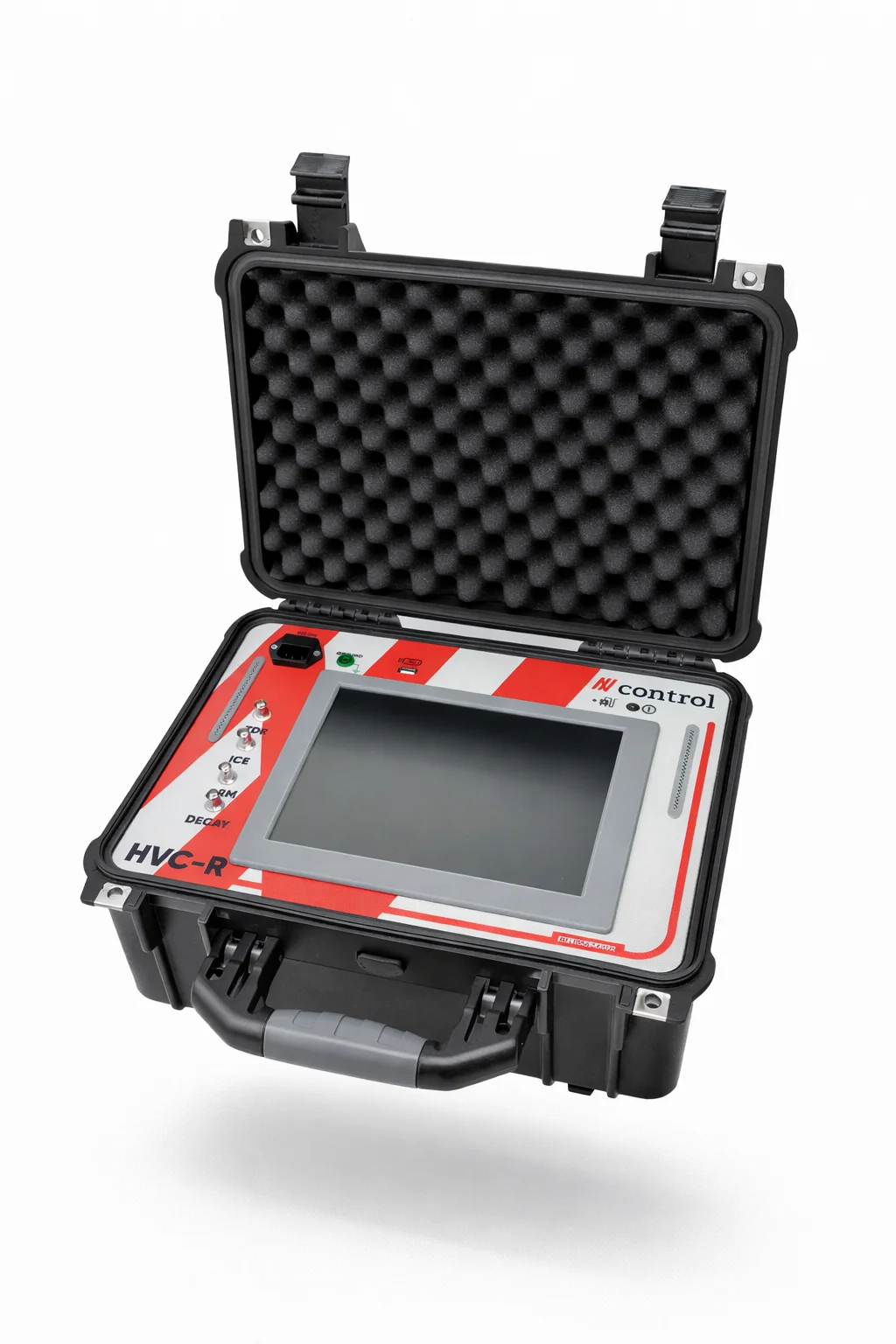

Highlights
- 10.4 inch color LED backlight touch-screen.
- Easy operation through its touch screen.
- Compatible with all existing pre-locating systems.
- Compatible with all existing locating systems.
The primary objective of the use of reflectometry is to pre-locate a power cable failure in a fast and accurate way so as to ensure optimum basis for further pinpointing.
Measuring ranges| 1000 m to 250 Km @ 80 m/μsec
Pulse width|150ns at 8μs
Pulse amplitude|20Vp a 100Vp
Resolution|1 m @ VP2=80m/ seg
Sampling frequency|80 MHz
Methods|TDR, ICE, ARC and DECAY
Output impedance|50 ohm
Measurement|Movable cursors on screen
VP/2|Adjustable between 50 m/μsec-150m/μsec
Zoom|Yes
Memory|> 1,000 reflectograms
Connectors|USB 2.0 - BNC
Display|8.4inch high-contrast TFT LED backlight color screen, 800 x 600 pixels
Dimensions mm. (height, width, depth)|162 x 365 x 273
Weight|5 kg
Power supply|240 VAC / 50Hz
Operating temperature|-10 °C … +50 °C
Technical specifications
- Simple operation.
- Compact, portable and lightweight equipment.
- Technology:
- TDR: Time-domain reflectometry.
- IF-TDR: Intermittent faults — TDR.**
- ICE: Current impulse.
- ARM: Reflection during arcing. ** / *
- M-ARM: Multiple reflections during arcing.**
- DECAY:. Voltage decay. ** / *
- Display of up to 4 different measurement curves.
- Internal compensation for a good representation of surrounding areas.
- 1 GB memory for correct measurement storage.
- USB port connection.
- Step selectable digital filtering.
Supported Filters and Couplers
- ARM filter (Arc Reflection Method).
- DECAY filter (voltage decay reflection).
- Inductive coupling for Impulse Current Method (ICE).
