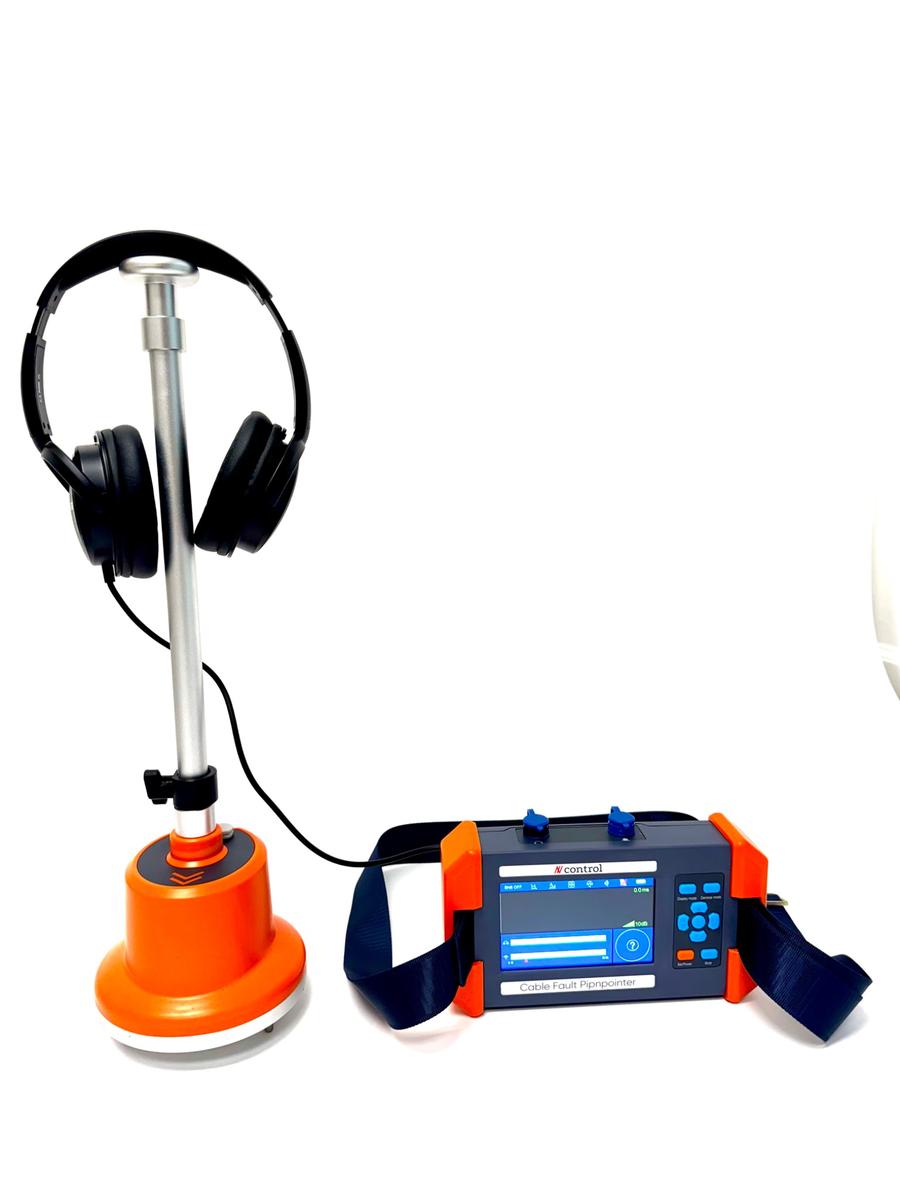

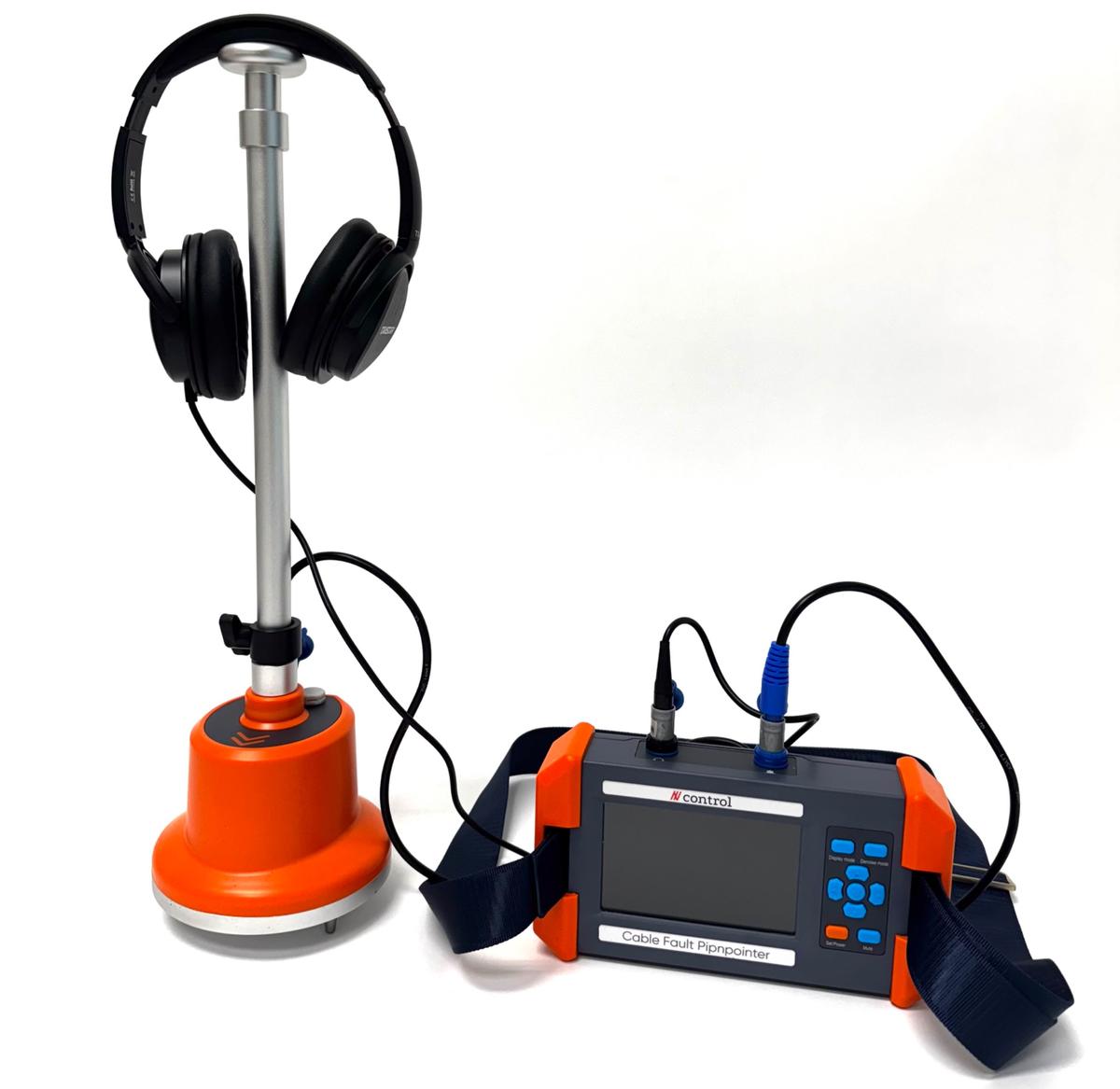

Cable Fault Pinpointer HVC-P is an easy operation device used to pinpoint the fault point.

It integrated the function of acoustic magnetic synchronization method, the step voltage method, the magnetic field strength method to make the pinpointing accuracy.

Technical Specifications
Bandwidth:|all-pass: 80Hz~1500Hz
low-pass: 80Hz~400Hz
high-pass: 200Hz~1500Hz
band-pass: 150Hz~600Hz
Signal gain:|≥80dB
Accuracy:|0.1m
Background noise reduction mode:|support noise reduction, no noise reduction, adaptive noise reduction
Battery:|built-in Li-ion battery series,3.7 V,6700mAH
Continuous work time:|above 9 hours
Charger:|input AC220V±10%,50Hz;output 8.4V,output 5V/2A
Display method:|800X470 dot LCD
Size:|230mm×127mm×55mm
Weight:|main unit 1kg,sensor 1.4kg
Use environment:|-10℃~40℃,5-90% RH, elevation <4500m
Price on request
Rent Banner The product is available for rent

Features:

  • Integrated the function of acoustic magnetic synchronization method
  • Adopts background noise reduction tech. to reduce environment noise
  • Intelligent pinpointing method to calculate the acoustic magnetic delay value
  • Background noise reduction function
  • Auto muting function to avoid the noise
  • Electronic compass function to display the included angle between cable route direction and sensor. It’s very useful for quick pinpointing acoustic channel filtering parameter adjustable
  • Auto gain adjustment function for easy use, automatic trigger by magnetic field
  • High performance anti-noise headphone
  • 800×840 color LCD, luminance reach 800cd/m2 to make clear display under the sun
  • Power supply management: power off automatically in 5 min. without action; Power off also when
    low battery voltage
  • Built-in Li-ion battery

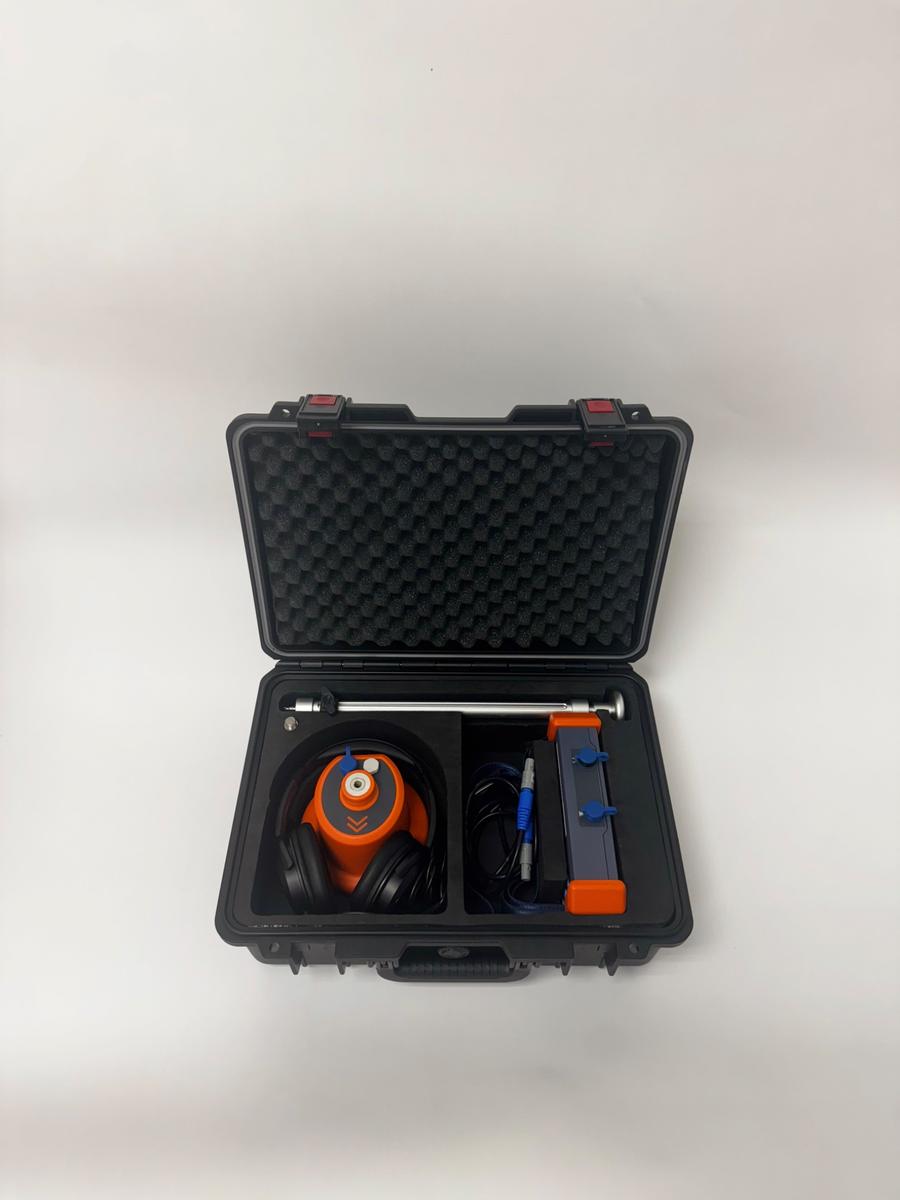

Standart Configuration

  • Main unit x1
  • acoustic magnetic synchronous sensors — x1
  • High performance anti-noise earphone — x1
  • Connection line — x 1
  • Charger — x1
